BACKGROUND
Having worked with many gas network providers over the years, Shenton Group was approached once again by a long-standing client to assist with their network role out.
PROJECT OVERVIEW
The requirement for this particular project was to install a natural gas generator at a remote site in Shalford just outside Guildford. These gas network sites usually have a size range of between 10kVA and 110kVA, and due to our extensive knowledge of these sites, we quickly determined the required generator size for this site to be 12kVA in a single-phase configuration.
![Generator Engine](/wp-content/uploads/jch-optimize/ng/wp-content_uploads_2021_04_Screenshot-2021-04-26-at-16.57.28-min.webp)

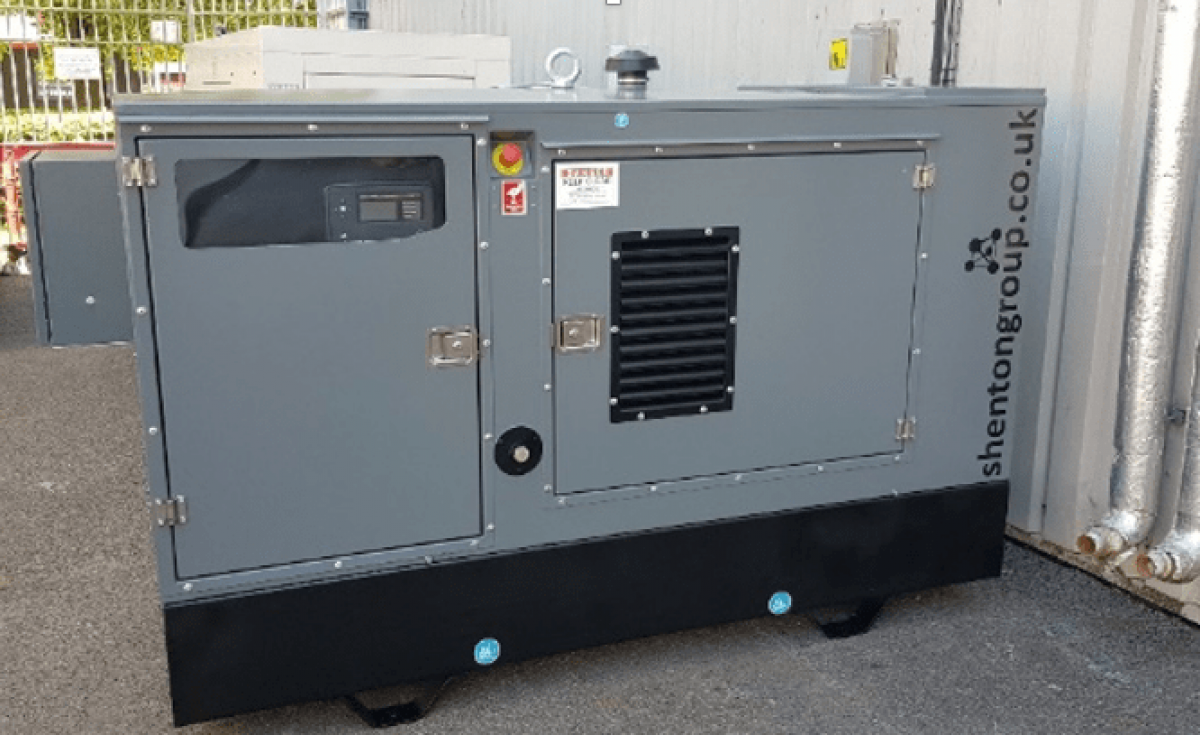

Whilst not being large generators, these projects are still complex due to their nature, and each installation must go through a detailed specification review and technical submission sign off. Once our technical submission was signed off, we manufactured the 12kVA single phase generator utilising a GM engine, Mecc Alte alternator and Deep Sea Electronics control system. With uptime being of absolute importance, a detailed alarm schedule had to be adhered to, and the control system had to be programmed to pick up any potential faults.
![Generator switches](/wp-content/uploads/jch-optimize/ng/wp-content_uploads_2021_04_Screenshot-2021-04-26-at-16.58.17-min.webp)
As well as the generator, Shenton Group also supplied a 100A single phase changeover system built utilising contractors as per the client’s requirements. Once the generator and changeover panel had passed their internal pre-dispatch tests, we delivered the equipment to site and positioned it. The complete system was commissioned by one of our gas safe qualified engineers and signed off accordingly.
